Air Ventilaiton

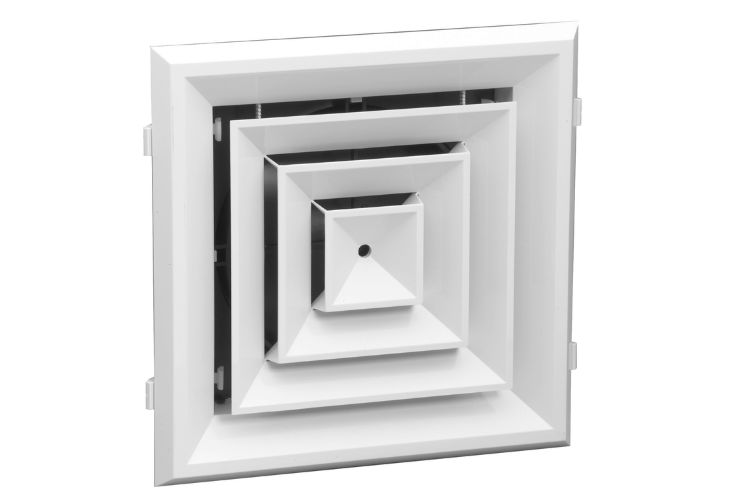

Diamond Shape Diffuser

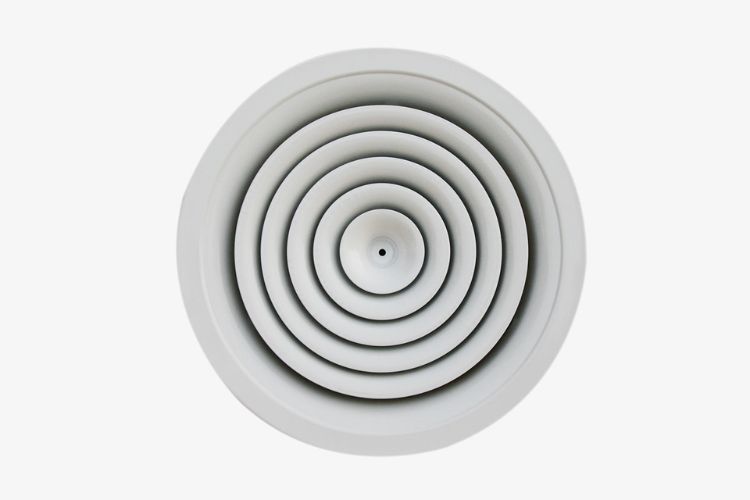

Inner cones fixed rigidly to frame

Optionally available with OVBD

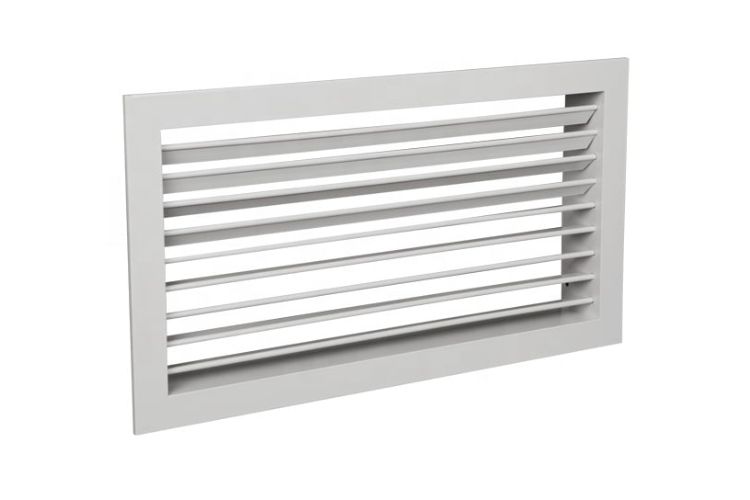

Single row front grille

Fixed Blade

Designed fir return air

Optionally available with Plenum Box

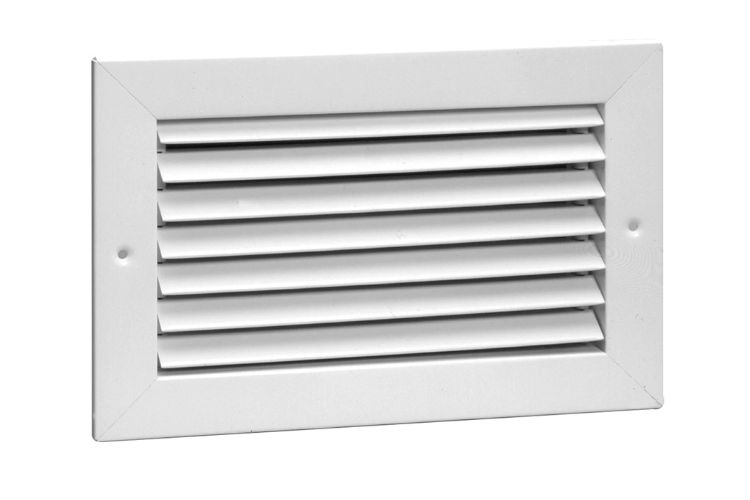

One row blades

Individually adjustable blades

Air flow adjustment operated from the front

Optionally available with OVBD

Single row front grille

Movable Blades

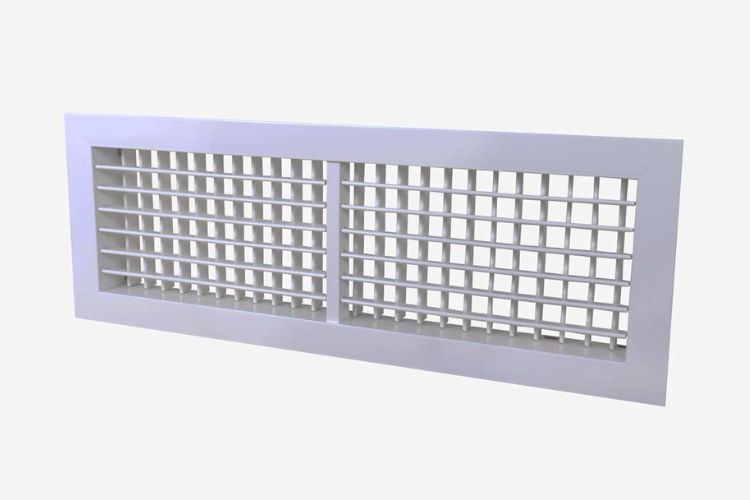

Two row blades

Individually adjustable blades

Air flow adjustment operated from the front

Optionally available with OVBD

Diamond Shape diffuser

Configurable air discharge direction

Used mostly for air supply and used in conjunction

Optionally available with OVBD and Plenum Box

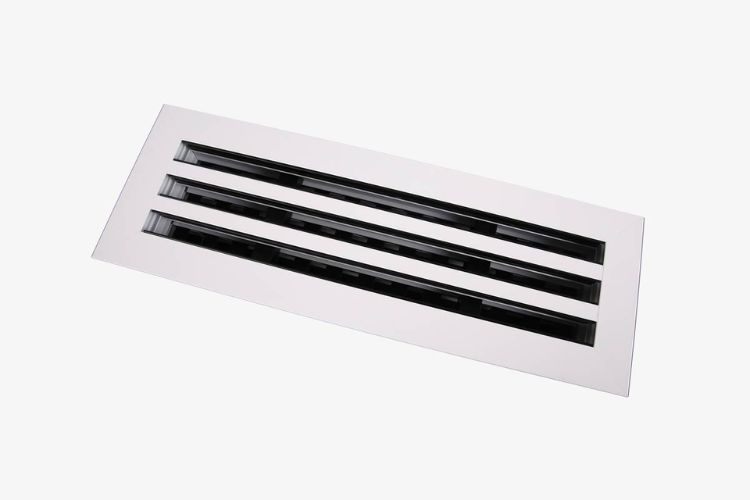

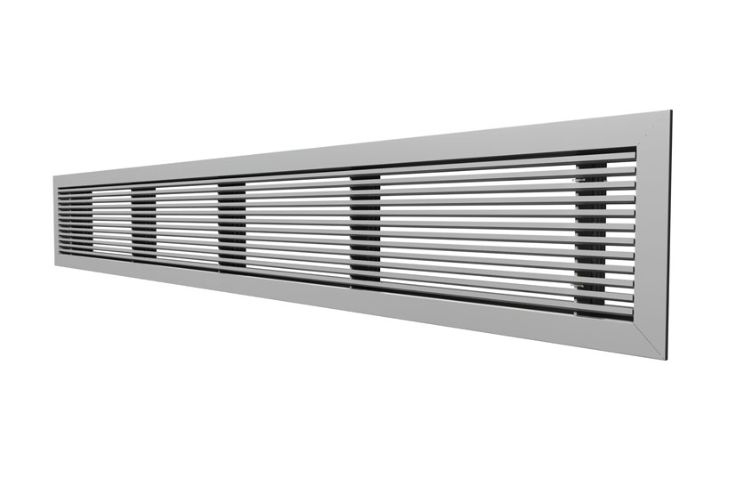

Linear discharge direction

For ceiling and wall installation

Optionally available with OVBD

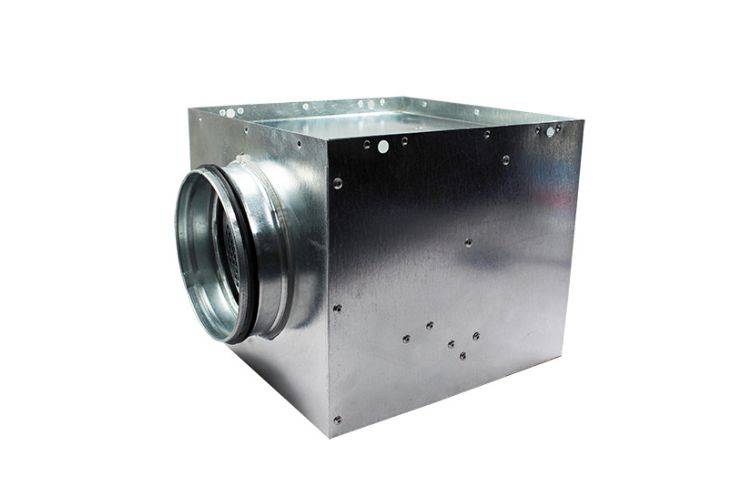

Design for providing the link between duct work and terminal

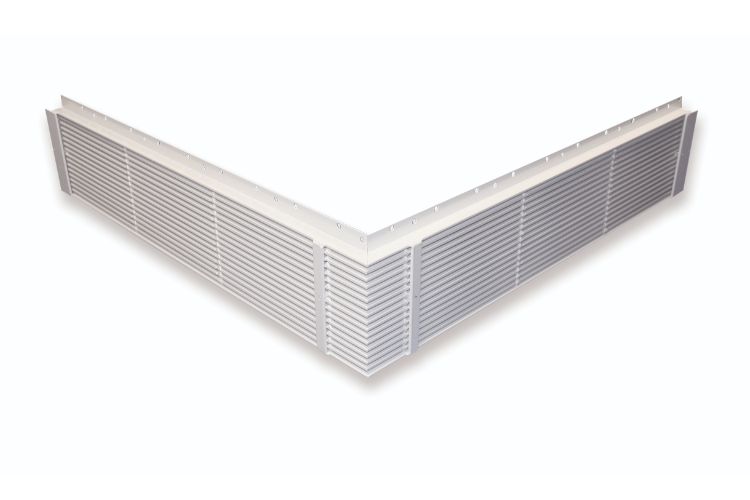

Designed for corner wall. Flooring or ceiling

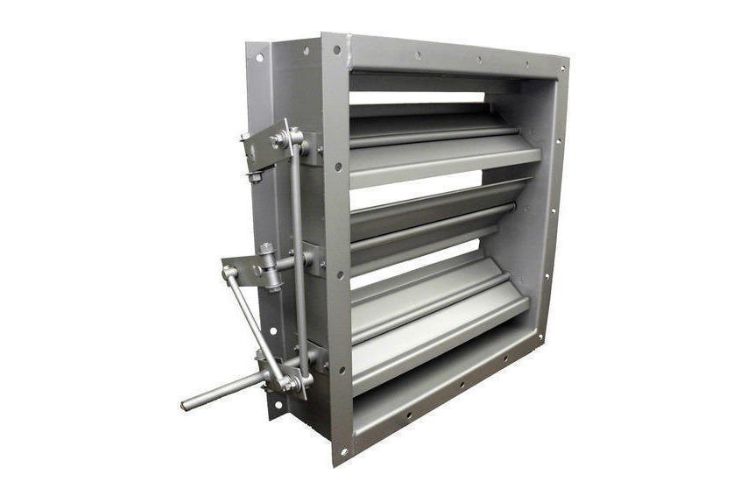

Are typically used to control flow in ducts that usually have high static pressure

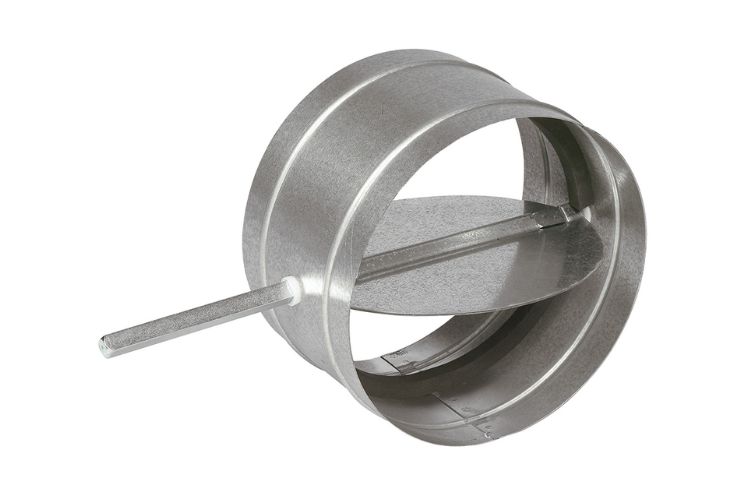

Control damper that regulate the flow of air

Compact design

It has adjustment device with handle

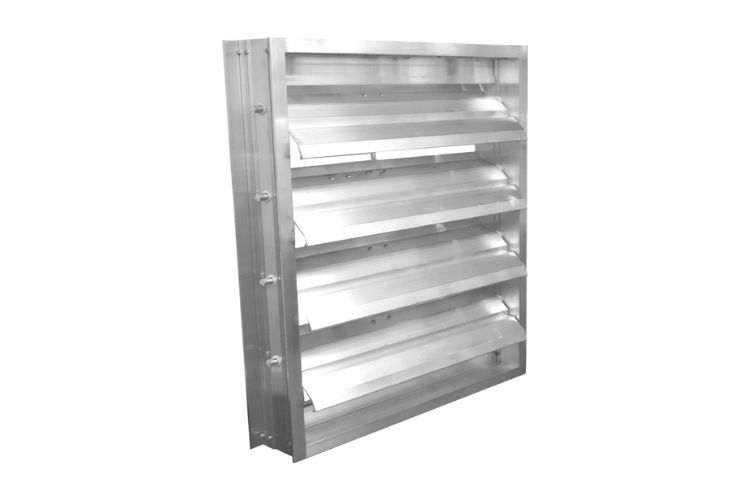

Commonly associated with wall exhaust or roof

Known as a gravity damper

Can be mounted horizontally and vertically

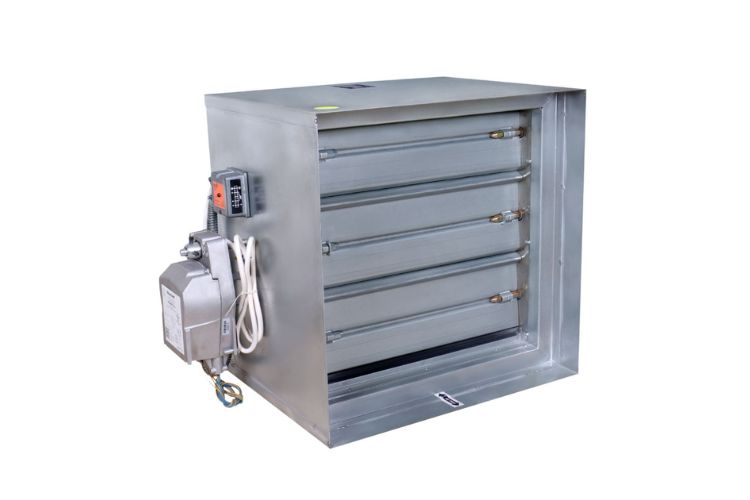

Dampers housing and inner parts are made from fireproof materials

Fire damper prevent the spread of fire through HVAC

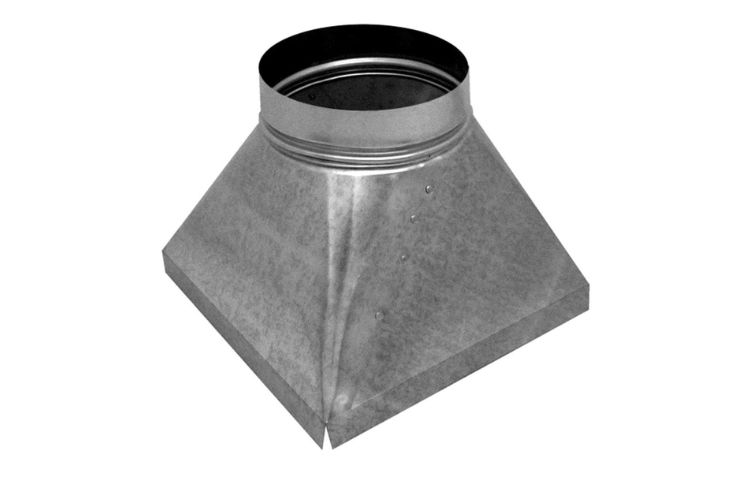

Allow as connections from rectangular grilles from rectangular grilles to round ducting

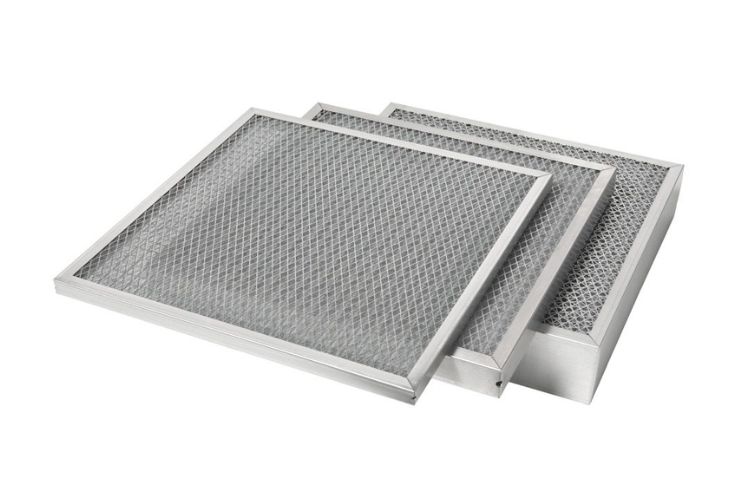

Multiple layers of expanded

Permanent, long lasting and washable

Filter captures large dust particular

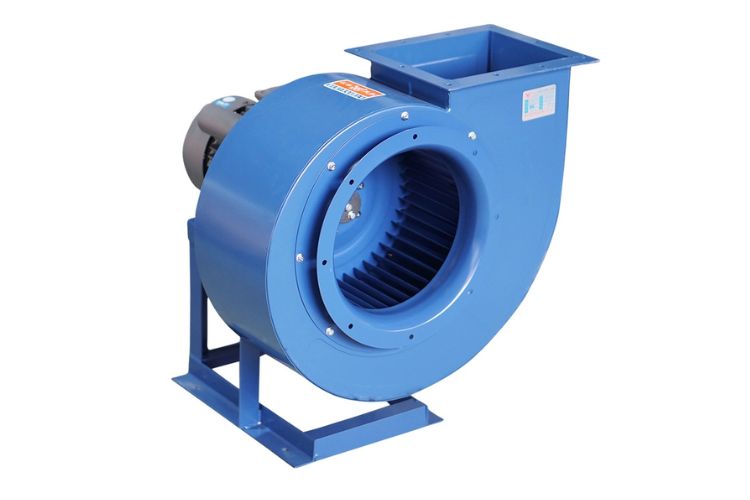

Capacity to 6500 CFM 2hp 3hp driven by centrifugal type belt drive

Capable to 8,000 CFM drive by 5hp,3hp model SWEI. Backward Inclined type blade

Capable to 5400 CFM driven by 1 hr single phase model SWIE Disk type fan blade

Capacies to 3,482 CFM driven by 1ph single phase model SWIE Disk type fan blade

Capacies to 95,000 CFM, 5” S.P. Cast aluminum wheels with airfoil blade for high-pressure ventilatioon and industrial process application. Direct air fan feature wheel available at specific blade angles to maximize performance

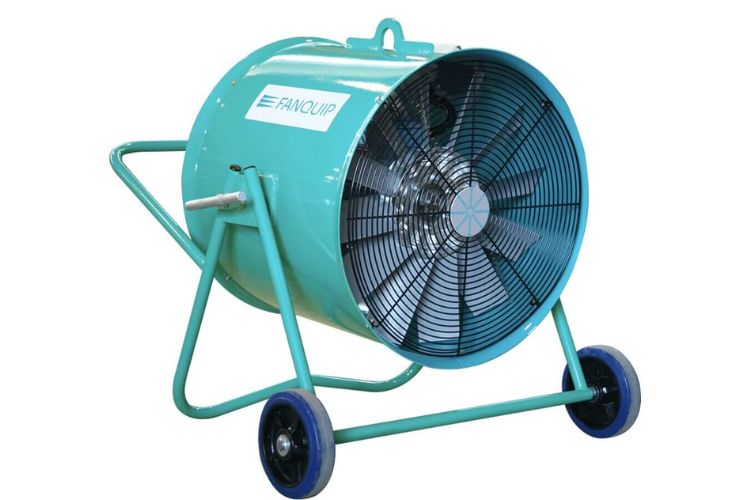

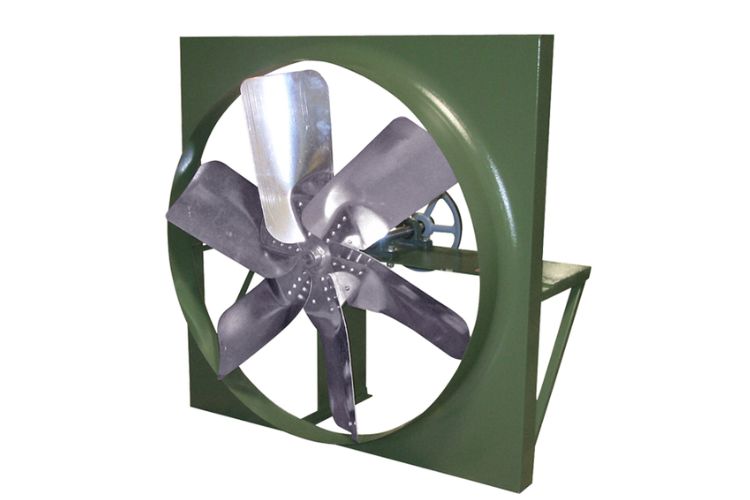

Belt and direct drive. Capacities to 80,000 CFM, 1 1/2 S.P.Steel axial -low pressure venlain and industrial process man cooler fan and axial fan are available in 13 size with wheel designed selected to optimized performance across each line

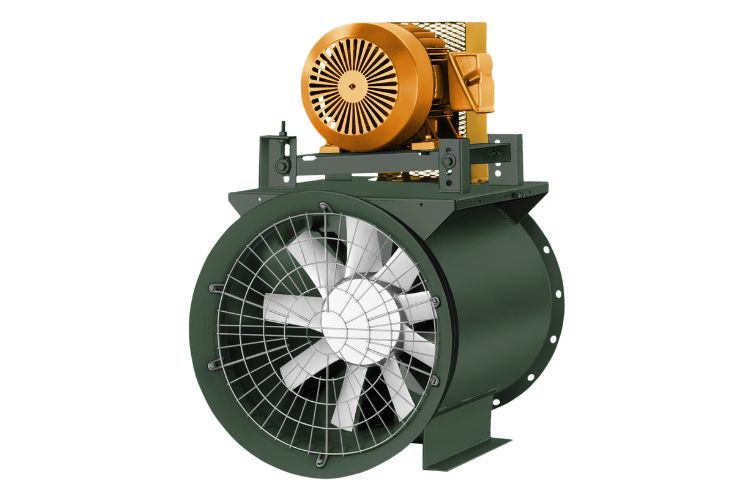

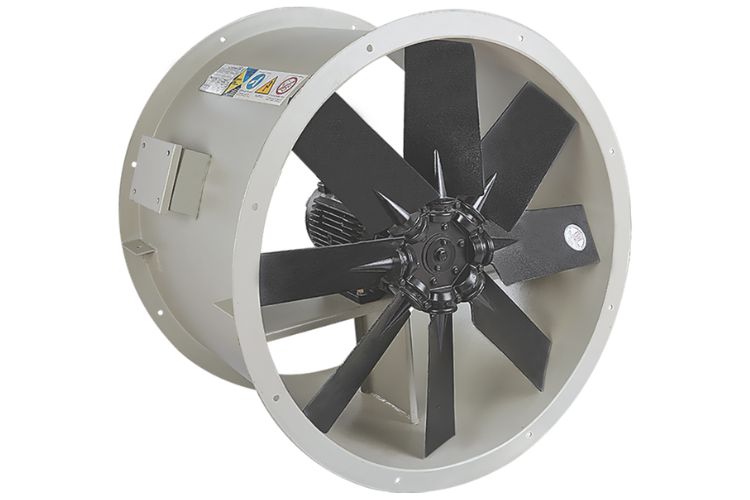

Belt and direct drive. Capacies to 90,000 CFM 1 1/2 S.P steel axial -low wheels for low-pressure venlaon and industrial process application. Tube axial duct fan and duct fan are available in 13 size with wheels designs selected to optimize performance.

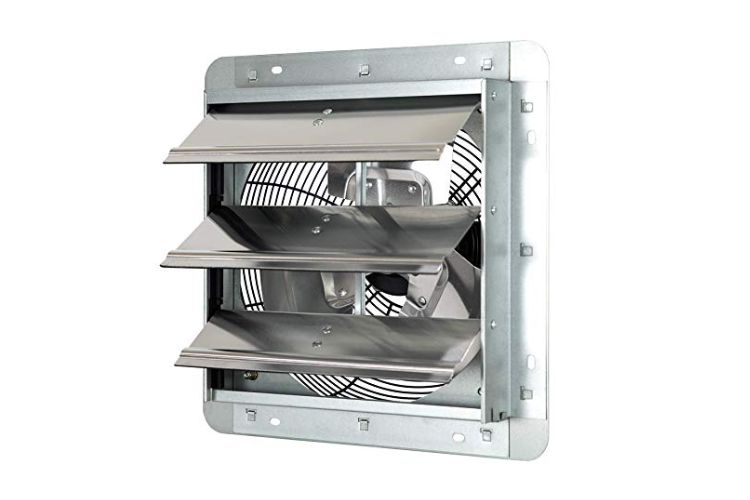

Capacies to 36,000 CFM, 1 1/2 S.P Five size available as exhaust or supply fans. Heavy -duty automatic or motorized shutter

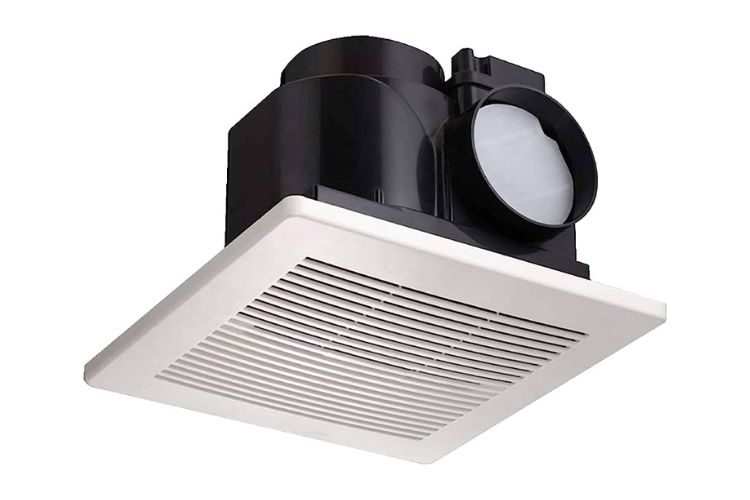

High low speed selectable

Condenser motor with thermal cut-off

Well lubricated bearing for long life operation

Pre installed Power cord

Resonance Noise Absorption Structure

High Perfomance Taper Blade design sirocco fan
